商品詳情

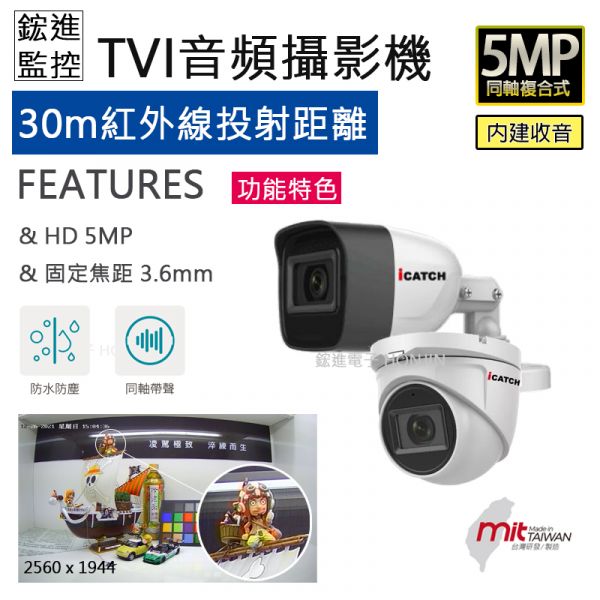

可取國際 5M同軸音頻攝影機
IT-BL5168-TW,IT-MC5168-TW
- 高畫質影像HD 5MP (2560 x 1944)
- 高畫質影像傳送–畫面不壓縮,影像不延遲
- 超長傳輸距離
- 與原本類比系統架構相同,電纜線(同軸/雙絞)不需更換
- 固定鏡頭:3.6 mm
- 紅外線距離30米,IP67防水等級
- CoC (UTC) 同軸控制OSD選單
- 內建音頻
-
資訊下載
產品規格
Image Sensor
2MP CMOS image sensor
Effective Pixels
2560 (H) × 1944 (V)
Signal System
NTSC
Video Frame Rate
5MP@20fps, 5MP@12.5fps, 2MP@30fps
Min. illumination
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Day/Night mode
Mechanism IR cut Filter
Angle Adjustment
Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
Shutter Time
1/30 s to 1/50, 000 s
Lens Type
3.6mm
Field of View
horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°
Lens Mount
M12
Synchronization
Internal synchronization
IR LED Range
Up to 30M
Video Output
TVI
Audio
Built-in mic
Auto Gain Control
Support
Digital WDR
Support
Back Light Compensation
Support
Image Effect
Brightness, Sharpness, Saturation, Contrast, Mirror, DNR, Smart IR
Language
Traditional Chinese
Weather Proof
IP67
Operating Conditions
40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
Power Source
12 VDC±25%
Power Consumption
Max. 3.7W
Material
Metal
※ 內容規格功能如有變動,將不另行通知。
